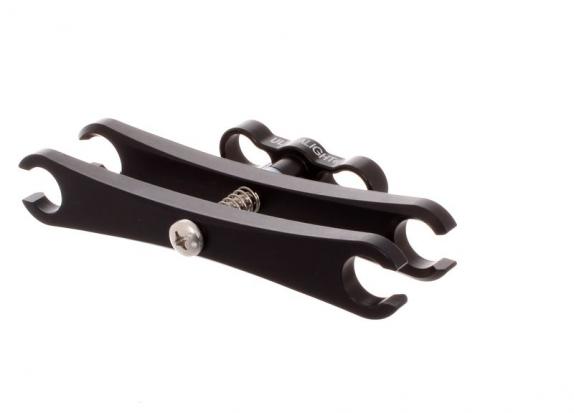

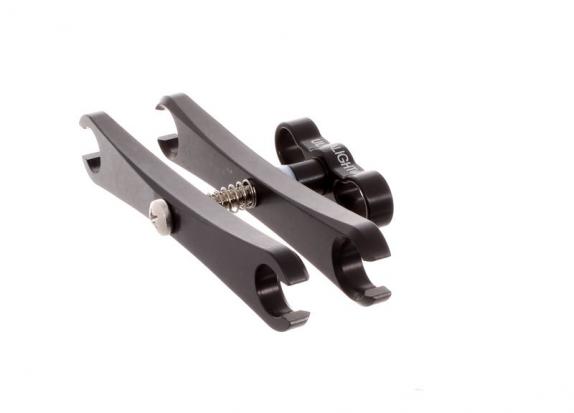

Ultralight AC-CSLXLSK2 double cut-out extra long clamp with 1/4" coarse thread for underwater camera systems and cinema rigs

Description

• Extra-long 5" double-cutout ball clamp combines maximum reach with up to 200° of side-to-side movement for exceptional positioning flexibility.
• Measures 5" between the centers of the two ball mounting holes, providing substantially more reach and clearance than standard-length clamps.
• Double-cutout design allows lights, strobes, monitors and other accessories to be positioned at angles that are difficult to achieve with traditional clamps.
• Can simplify some mounting configurations by providing additional reach without adding a separate short arm.
• Uses a 1/4"-20 coarse-thread bolt and works with standard 1" ball components.
• Made from 6061-T6 aircraft-grade aluminum for strength and durability.
• Made in the USA and backed by Ultralight's lifetime warranty.
• NOTE: The AC-TKW extra-large wing-style knob is not recommended for use with the AC-CSLXLSK2. The additional leverage of the oversized knob can allow the clamp to be overtightened.

The AC-CSLXLSK2 combines the extended reach of an extra-long clamp with the increased articulation of Ultralight's double-cutout design. With 5" center-to-center spacing and up to 200° of side-to-side movement, it's an excellent choice when both maximum clearance and greater positioning flexibility are needed for lights, strobes, monitors and other accessories.

Which Double-Cutout Clamp Do I Need?

• AC-CSSK2 –1½"— Compact double-cutout clamp with up to 200° of movement.
• AC-CSBSK2-2"— Additional clearance for buoyancy arms and STIX floats with up to 200° of movement.
• AC-CSLSK2 – 3"— Extra reach and clearance while retaining up to 200° of movement.
• AC-CSLXLSK2 – 5"— Maximum reach and clearance while retaining up to 200° of movement.



Take a look at the blog, "The Benefits of Using Ultralight Cut-out Clamps"
